Autodyne is a 4hp auto-compressor/distortion featuring a multi-mode side chain filter and NY style parallel compression blend control.
Ratio, Threshold and Gain are all built into a single, simple to use COMP control. Compression gets more extreme as this control is swept past center position. Setting below center offers more subtle/typical compression.
Autodyne Automatically Responds to Transients, will glue a mix with ease and dial in the perfect feeling of the program material you feed into it.
GAIN CONTROL to trim the final output gain or offer up some extremely brutal distortion, whichever you prefer.
Switchable Side Chain Filter is provided along with a triple slope high pass filter, in order to retain lower frequency content and unwanted over-compression by removing them from the Side Chain. Input signal is normalized into the Side Chain or an external signal may be utilized via the Side Chain Input.
Parallel Compression BLEND Control mixes the unaffected input signal with the compressed output for even further control of your sound. Compression may be bypassed simply by sweeping this control to minimum position.
Controls are simple enough to match in tandem for dual unit, stereo operation, if desired.
Audiophile grade discrete components and Burr-Brown op amps used throughout.
Autodyne starts shipping to dealers the first week of June 2019
Stereo Dipole begins the journey to our dealers and eventually, into your hands.
If you pre-ordered the Dipole, please allow some time for our dealers to receive shipments and expedite your order.
Stay tuned for demo videos, and full manual. You can view the quick start guide HERE
The Ultra-Random Analog is back with a new look. Ships to dealers starting March 1st 2019
The newest Gate Storm firmware adds extensive functionality, including:
- Ratchet sequencing per step
- +/- step delay system
- Sequence action system (pattern chaining)
- New clock modes - Direct 1:1 and 24/48ppqn
- And more!
Full details and firmware download with instructions: HERE
We are happy to announce that the new Entity Percussion Synthesizer and revised Entity Bass Drum Synthesizer will begin shipping to our dealers on 12/04/2017.
CLONE is a 3hp, High fidelity Multiple featuring two 1x4 buffered multiples.
Multiple B is normalized from multiple A to provide 1x8 multiple capability.
CLONE allows for signal multiplication with extremely low degradation and each section is capable of driving an equivalent load impedance of 600 Ohms without distortion and extremely low signal loss.
We use audiophile grade active components to ensure signal integrity and fidelity across the audio and low frequency spectrum, ensuring practically zero loss of your multiplied signals.
In light of modular making it's way into polyphonic territory, 1:4 multiples are necessary to accommodate 4 voice polyphonic modular systems.
DETECT-Rx features three useful utilities to expand your modular capabilities.
EXTRACT-R is a voltage controlled comparator with three selectable range settings, LINE LEVEL, 5V and 10V. A Threshold knob sets the trip point to extract a 10V gate signal. CV input allows for PWM and voltage control of the comparator threshold.
RECTIFY-R is a simple positive voltage rectifier for octave-up and rectifying bipolar signals into positive only signals. Signals patched into the DETECT-R are routed to the RECTIFY-R section.
DETECT-R is a versatile Envelope Follower designed to offer maximum control of the envelope based on signal level and frequency content. This is accomplished with three selectable frequency ranges, an additional envelope smoothing control and an envelope gain control offering up to 27dB of input gain to accommodate line and low level signals and overdriving the envelope.
Some convenient Jack normalizations are provided:
Patching into the DETECT-R only; will normalize the input into the EXTRACT-R and RECTIFY-R, providing all outputs from a single input.
A signal 'THRU' buffers the input signal going into the DETECT-R so that it can be routed to the input of a filter or other module to be processed by the resulting envelope.
Patching into the EXTRACT-R only; will normalize the GATE output into the Envelope DETECT-R input, producing an extracted GATE based envelope at the EXTRACT-R's output.
All normalizations break if additional inputs are utilized, with exception of the RECTIFY-R, which is always routed from the DETECT-R input.
We are pleased to announce the next addition to the SSF Entity module series...

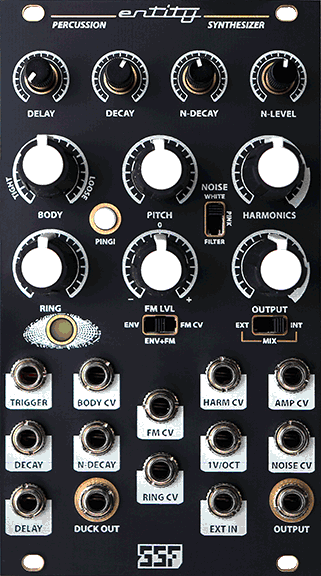

Introducing the Entity Percussion Synthesizer.
The Entity PS is focused on a wide variety of snare, clap, snaps, rim shots and synth percussion sound design. The major parameters for Body, Pitch, FM CV and Ring are similar to the Entity BDS. A multimode noise source is included with independent decay and amplitude modulation. The resonator core features independent decay control, trigger delay and dynamic control. A harmonics (wavefolder) section replaces the saturation stage of the Entity BDS. The output section features a mix selector where the user can choose to use the resonator, an external input via the EXT IN jack or a mix of the two. All features are voltage controllable and a duck output for the main sound is also included. We are very happy with the range of sound possibilities of the Entity percussion Synthesizer and hope you will be too! We remain focused on continuing the analog legacy by producing modern, 100% analog designs.
Availability: late Summer 2017
The Modbox is a tempo syncable modulation source with a three-phase LFO, CV Skewable LFO, Sample and Hold, and White Noise generator.
LFO 1 is a three-phase LFO with independent outputs for each phase which are set at 0, 120, and 240 degrees. Shape can be switched between Sine, Triangle, and Saw with a push of a button.
LFO 2 is a Skewable LFO with three shapes. The LFO shape can be smoothly changed from a Ramp through Triangle to Saw wave shapes. The skew shape can be changed with the Skew knob or with CV
The Sample and Hold circuit's clock is normalled to the 2nd LFO but can be clocked externally as well. The sample and hold samples voltage from and internal white noise source and can also be replaced by an external voltage source. White noise has it's own output as well for use with other modules and applications.
Both LFOs can be sync'd to an external clock source by holding the wave shape button for different lengths of time. As they are independent of eachother, one can be sync'd while the other runs free like a gazelle on an African plain.
Tempo sync calculates the time between incoming clocks and reacts instantly to each new clock pulse. Each rate knob becomes a multiplier/divider when sync is engaged.
-Two independent, clock syncable LFOs
-Sample and hold circuit
-White noise generator
-Three phase LFO with 3 shapes and independent outputs for 0, 120, and 240 degrees out of phase.
-Skewable LFO with three wave shapes controllable with knob or CV
-Fast and easy syncing with external clocks
Only 6 hp.
3ɸ RATE: Controls the speed of the Three-Phase LFO. Acts as a clock Multiplier/Divider when clock sync'd with multiplications on the and divisions to the left. Divide/Multiply by up to 16.
SKEW RATE: Controls the speed of the Skewable LFO. Acts as a clock Multiplier/Divider when clock sync'd with multiplications on the and divisions to the left. Divide/Multiply by up to 16.
SKEW SHAPE: Allows the change of wave shapes for the Skewable LFO with a knob. Becomes an offset with CV.
WAVE SHAPE BUTTON: Tapping this button changes the shape of the 3ɸ LFO. Holding this button for different lengths will sync the LFOs to an external clock via the Sync input.
Holding the wave shape button longer will produce different results:
1 second: 3ɸ LFO will be sync'd and skewable LFO will run free.
2 second: 3ɸ LFO will run free while Skewable LFO will be sync'd.
3 Seconds: Both LFOs will be sync'd to the External clock.
To de-sync LFOs, just hold again for .5 seconds and release.
Announcing the arrival of the new Entity Bass Drum Synthesizer. Please check with our dealer list for availability in your part of the world. We are working to get these out to our dealers as efficiently as possible. Happy Holidays! Check out the Entity product page HERE
SSF announces our newest module - the Entity Bass and Drum Synthesizer Voice
The Entity BDS is a complete and versatile synthesizer voice geared for designing a huge array of bass drum, percussive and synth sounds. Finally, a truly deep tool for creating analog bass drum, bass lines and other percussive effects is here!
The design consists of a high fidelity resonant filter, 2 stage slope generator (rise/fall) with independent slope shaping, a high fidelity VCA and discrete transistor saturation circuitry. Every parameter on the Entity Bass drum is voltage controllable.
By applying a trigger of any length and at least 2V amplitude, we excite the resonant filter to produce a percussive sine wave. The pitch control tunes the output with a range of 8Hz to around 2.2KHz. Both higher and lower levels are achievable using the FM input for modulation etc. The internal filter will track 3-4 octaves reliably and the tracking device is temperature compensated.
The slope generator (ENV) can be switched into the circuit via the 3 way switch below the FM LVL control. This control is a bipolar attenuator which affects the level of the slope generator and/or external modulator that affects the pitch of the output.
The 3 way switch selects FM, FM+ENV or just ENV as a mod source.
The rise/fall envelope is a two stage function generator. The controls provide slope timing from 1ms to about a minute. To the right of these controls is the shaping section where logarithmic, linear and exponential slope shapes are selected independently for the two envelope stages.
The envelope is designed to re-trigger at a set point. This allows for changing dynamics to occur to pitch and amplitude when the slope times are greater than the output transient time. For instance the sound can vary between any number of triggers that fire before the envelope set point is reached. Setting the slope time fast enough (below roughly 1 o'clock) provides for nominal operation. Settings will vary depending on trigger and ring decay timing.
The envelope can also be used exclusively or in a more complex patch via a direct +ENV output. Additionally, a novel DUCK output provides a means to control external VCAs - to work like slow compressors. DUCK is an inverted and positively offset version of the +ENV out. This keeps VCAs open when the envelope is off and effectively 'ducks' the VCA when the envelope fires. Of course, mod sources for these outputs are not limited to VCAs...
BODY is a subtle, yet novel control. This control simulates the tightness of a drum head. All the way tight, we get a softer and somewhat muted sound, to the right we achieve a more flabby sound. The middle region is the sweet spot for a nearly perfect resonant drum. BODY can have a greater effect depending on the other parameters and can be very useful for fine tuning the sound in a mix and designing original drum sounds.
RING controls the resonant decay time. Both short and plucky and an infinite ring are obtainable. The filter is tuned so that it will always resonate a little, even when RING control is all the way down.
Before the output section, we have the discrete transistor saturation. We like this because of the vintage low end distortion from overdriven class-A discrete amplifiers. This one is tuned a bit more aggressively and just a touch is necessary to add some bite. However, you can go over the top and get brutal if you so desire... ;-)
The saturator will overdrive the output stage for more of a hard clipping effect that can be tuned out by adjusting the output level control without sacrificing signal amplitude - its a hot signal by intention.
The OUTPUT section is a parallel signal processor design. The OUTPUT control blends the nominal output with a secondary input (or nothing) depending on the 2 way switch setting below the control and/or whether an external signal is patched into the AMP CV input. In 'AMP' mode, the OUTPUT control works like a volume control. If a signal is active on the AMP CV input, the control will blend between the nominal output and the CV control level. Similarly, in 'ENV' mode we get the same blending action using the internal envelope.
The result is a sort of parallel compression effect as the output and CV sources are blended together - or totally independent at the extremes.
By providing amplitude shaping as well as pitch, resonant decay, body etc. even more sound shaping possibilities are available.
The VCA can also be accessed directly via the A-MIX input. This allows you to use the output section as a standalone VCA (modulated via the envelope or not) or to mix other sounds with the Entity. Feedback patching is a possibility using a stackable or mult to feed the output into the A-MIX input. This produces a juicy distortion effect of a different flavor, you may like it.
The filter can be used independently or in combination with the nominal output via the F-MIX input. This input is used as an aux trigger input that is sensitive to pulse/trigger width. As the effect is less dramatic than the main trigger, dynamic rhythms are achievable using both inputs and creative triggering.
As an acid style processor, patch a VCO input the F-MIX input and use the controls to modulate and accent the signal for some convincing 303 style acid bass lines and beyond.
PING! button to demo sounds without a trigger source.
RGB LED for visual feedback of trigger, FM and output waveform
All parameters are CV controllable. Controls double as CV attenuators.
Very high fidelity design - no generic op amps used in signal path. Only discrete components and audiophile grade op amps. Signal path is completely isolated from euro power rails. Very low nominal noise. High headroom using hotter signal levels and will cut through any mix.
GateStorm, a collaborative module from Erogenous Tones and Steady State Fate, is designed to be an advanced Gate Generator with a highly flexible CV system with as much depth as you are willing to go. GateStorm was designed to be fun, intuitive, and more importantly, powerful. Don’t be overwhelmed by how much information is shown to you on it’s integrated display, once you start using it, you will see just how important and useful seeing that much information becomes.
While we are putting together videos to demonstrate all the functionality, design, and use of GateStorm, here are some highlights of most of the features that we are putting into production.
- 8 Gate Generators (4 Complex Lanes & 4 Simple Lanes)
- 7 Gate Inputs
- 1 Clock Input for Syncing GateStorm to an external clock
- Includes TAP TEMPO button as well
- 4 Local Gate Inputs
- 2 Global Gate Inputs (1 with integrated button to use when not patched)
- 1 Clock Input for Syncing GateStorm to an external clock
- 6 CV Inputs with Attenuator (Normalized to DC voltage)
- 8 Gate Outputs (0-10V) with Integrated White LEDs
- 320×240 High Contrast LCD screen
- 1 Rotary Encoder with Pushbutton for Data Entry
- 15 Buttons for Various Parameter Entry
- USB connection on rear for Firmware Updating
- 24 HP
- Skiff Friendly (Very shallow)
- Power: +12v/-12v
- Current: Max draw +120mA, -20mA
- Based on ChibiOS RTOS
- Common Features for Lanes:
- Time base settings from /16 to *16 off master clock rate
- Pulse Width settings form 1/32 to 1/1 (1/32 can be used for trigger)
- Sync or Free running
- Sync mode means changes ONLY occur at master clock boundaries
- Complex Lane Features:
- 1-16 Step Length
- Forward, Backwards, Palindrome or One-Shot Operation
- Simple Lane Features:
- Clk Density Function (Full Clock, or between 0% to 95% random)
- Logic Operations with ALL 8 Channels
- Invert any channel
- AND, NAND, OR, NOR, XOR, XNOR
- Fully Customizable CV Matrix (Any CV to any INDIVIDUAL Lane Parameters:
- Common Lane CV/Gate Destinations:
- Pulse Width
- Time Base
- Global Reset Trigger
- Global Random Trigger
- Global Transport Pause
- Complex Lane CV/Gate Destinations:
- Rotate Steps
- Length Steps
- Local Trigger Reset
- Local Trigger Random
- Simple Lane CV/Gate Destinations:
- Logic Mode
- Source A
- Source B
- Global CV/Gate Destinations (Outside of Single Lane Settings):
- Rotate Outputs
- (Also has output locking to prevent certain lanes from rotating)
- Preset Changing
- CVBus (Used Mungo/MacroMachines Mechanism)
- Absolute CV Value (Preset 1-8)
- Incremental CV Value (Steps presets, 1,2,3,4 in circle, wraps around)
- Global Trigger Reset (Resets ALL lanes)
- Global Trigger Random (Randomizes ALL lanes)
- Global Trigger Pause (Pauses Only Lanes with Pause Active)
- Rotate Outputs
- Common Lane CV/Gate Destinations:
- Additional Features of Note:
- 10 to 400 BPM
- 16 Banks of 8 Presets Each
- (Last Bank Used Loads on Restart)
- Shallow Menus, All Functions Labelled (Most 2 deep)
- Template System (8 Templates) for Creating Custom Starting Points
- Template 1 is used as Reset Values for System
- Macro functions to speed up making changes (or copying values across lanes)
- Global operations to change settings for all lanes at once.
- Transport control for stop/start/pause on selected lanes
- Lanes can be muted from one of the menus
- Random system PER patch, FULLY flexible PER lane:
- Complex Lane Steps can be Full random, Euclidean or Euclidean with Offset.
- Random Setting Matrix Page makes for easy visual of random settings
- Random constraint system allows controlling WHICH enumerated random values are selected from.
- Mod Matrix page shows ALL modulations (in real time) for easier configuration
- CV graph on main page for easily seeing CV values coming in unmodified
- CV value range of effect can be set PER modulation, both positive OR negative
- Entire CV/Trig system can be disabled for making changes and not having the system changing modulations like patch switching at the same time.
- System Settings:
- Built in System clock divider to handle faster system clocks
- Clock averaging settings (takes multiple samples) smooths out syncing of the clock (can do 1, 2, 4 or 8 samples)
- ADC Smoothing, Slewing and Hysteresis System. Can be tuned for user expectation.
- Step/Wiper color schemes
- Display Brightness Settings
