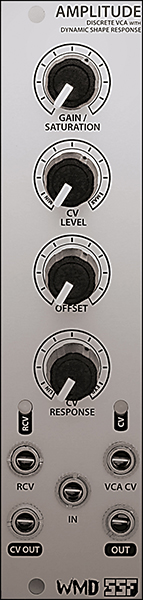

AMPLITUDE is a discrete transistor core VCA with a wide range of waveform saturation and distortion capability. This module is capable of faithfully reproducing the classic warmth and fat tones associated with vintage analog synthesizers and pushes that capability to the extreme. A novel voltage controlled linear to exponential converter is included and can be used to shape incoming control voltages to the VCA CV input and can be patched out to external modules.

  • Discrete transistor design based on vintage analog synthesizers
  • Gain/saturation control adds warmth and soft distortion
  • Manual linear/exponential CV response control
  • Integrated, voltage controlled linear to exponential CV converter with dedicated CV output
  • Dedicated CV offset and CV attenuator

Width: 6 hp

Depth: 25mm

Power: +/-20mA


MSRP: $149
